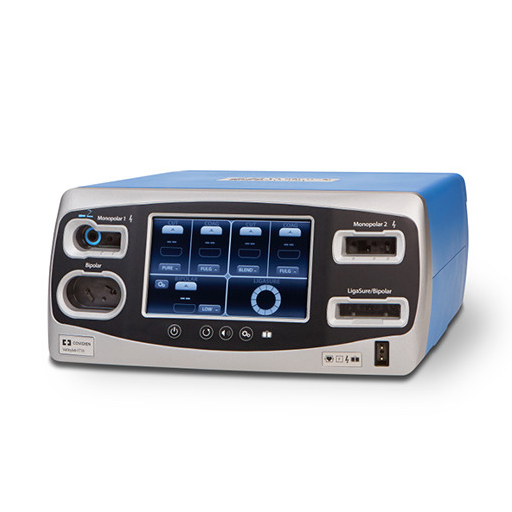

Valleylab FT-10 energy platform
Characteristics* RAPID SEALING: seals glasses from 1 to 4 sec. * TISSUEFECT TECHNOLOGY: constantly responds to tissue changes (at a speed of 430,000 times per sec.) While sealing. * INTUITIVE CONTROL PANEL: touch screen, Quick Settings and Error Alerts.
* Improved Ligasure technology for sealing vessels with less thermal dispersion. * Expanded electrosurgical characteristics

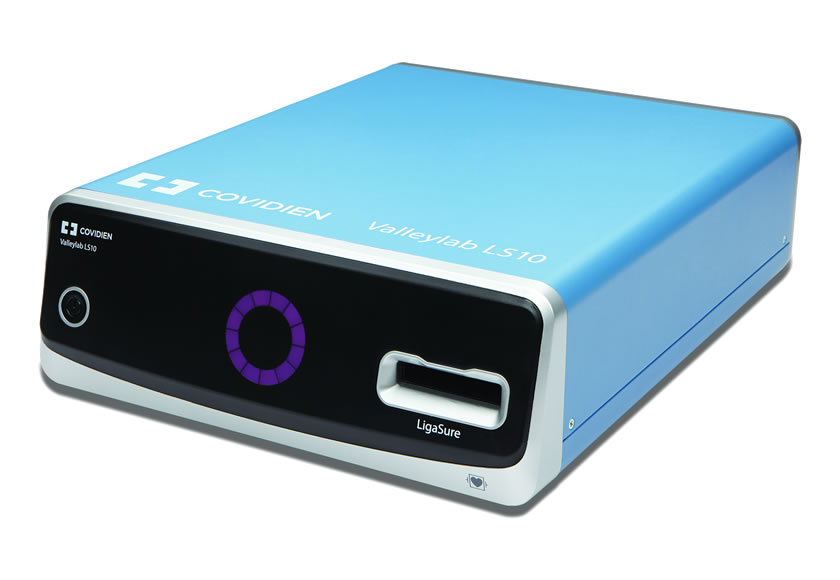

Valleylab Power Platform LS-10
Characteristics* RAPID SEALING: seals glasses from 2 to 4 sec. * TISSUEFECT PLUS TECHNOLOGY: applies the appropriate energy to each type of fabric for an effective seal with minimum thermal dispersion in vessels up to 7mm. * INTUITIVE CONTROL PANEL: a single on / off button, unique connection port of the Ligasure instrument. * INTELLIGENT CONNECTION (SMART CONNECTOR): recognizes the ligasure instrument used and automatically configures the power settings for fast and consistent results. * COMPACT & LIGHT: uses minimum space and is easy to move.
The new Valleylab ™ LS10 electrosurgical generator from Covidien provides you with the essential energy you need. Accessible and portable, the LS10 generator brings the next generation of LigaSure ™ blood vessel sealing technology to customers around the world, with a weight of only 5.5 KG.

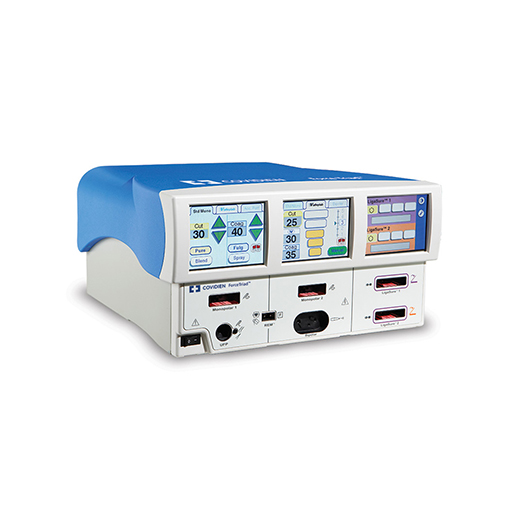

ForceTriad™ Energy Platform
Characteristics The platform is intended for open and laparoscopic surgical procedures and includes:
-TissueFect™ sensing technology across all modalities
-Valleylab™ mode for electrosurgery
-LigaSure™ fusion technology for vessel sealing
The ForceTriad™ energy platform is a full-featured electrosurgical system that provides electrosurgical cutting and coagulation, bipolar functionality, and vessel sealing in a single generator.

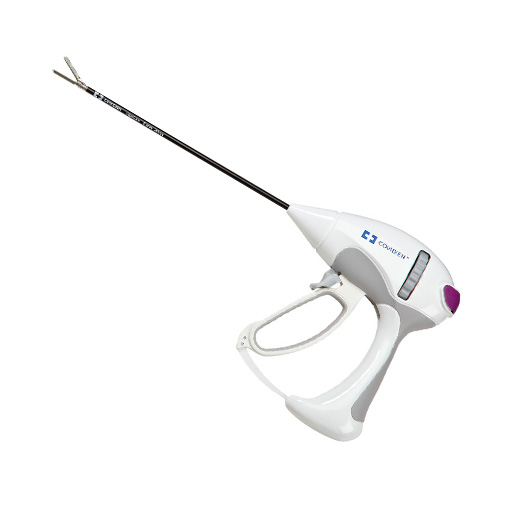

LIGASURE V LS1520
Characteristics* Shaft length: 20cm * Shaft diameter: 5mm * Shaft rotation 179 ° * Delphin nose
Clamp for sealing vessels up to 7mm, Platform compatible (Ligasure).

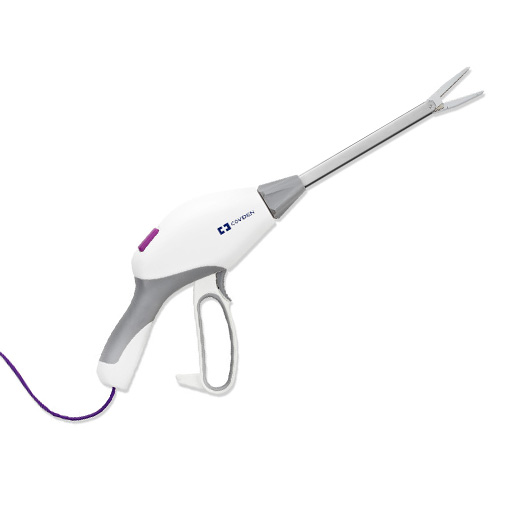

LIGASURE IMPACT LF4318
Characteristics* Shaft length: 18cm * Shaft diameter: 13.5cm * Shaft rotation 180 ° * Seal width: 3.4 - 4.4 cm * Seal length: 36mm * Cutting length: 34mm * Curve: 14 °
Clamp for sealing vessels up to 7mm, proven performance and improved design. Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).
LIGASURE MARYLAND LF1723
Characteristics* Length of the jaws: 20mm * Length of the shaft: 23cm, * Spinning of the axis 350 ° * Wide opening of the jaws: 13mm * Cutting length: 18mm * Activation method: Purple button.
Clip for sealing vessels up to 7mm, efficient, versatile and multifunctional, Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).

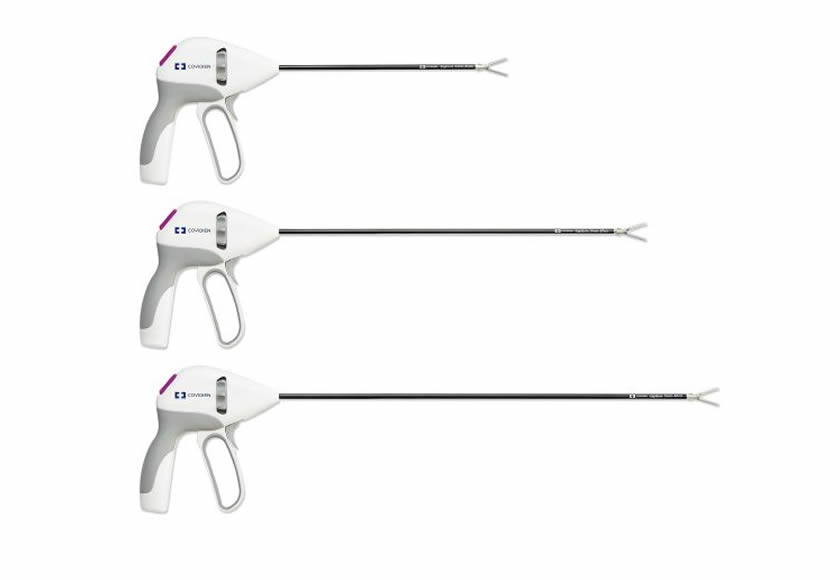

LIGASURE BLUNT TIP LF1637
Characteristics* Shaft diameter: 5mm * Shaft length: 20cm, * Jaw type: blunt, bilateral opening with contoured tip * Jaw surface: Textured with ceramic stops * Jaw opening: 14.5mm * Shaft rotation: 180 °
Clamp for sealing vessels up to 7mm, proven performance, improved design, Platform compatible (Ligasure, Force Triad, LS10 and FT10).

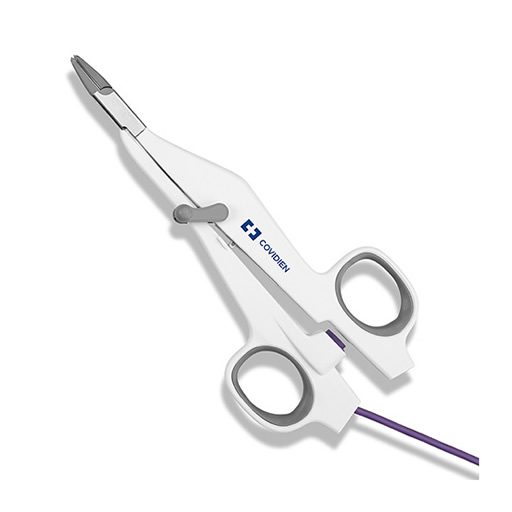

LIGASURE SMALL JAW LF1212A
Characteristics* Length: 18.8 cm * Degree angle: 28 ° * Seal width: 1mm, base 4mm * Cut length: 14.7mm * Seal length: 16.5 mm * Activation method: Button for manual activation.
Clamp for sealing vessels up to 7mm, something new, different and newer, Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).

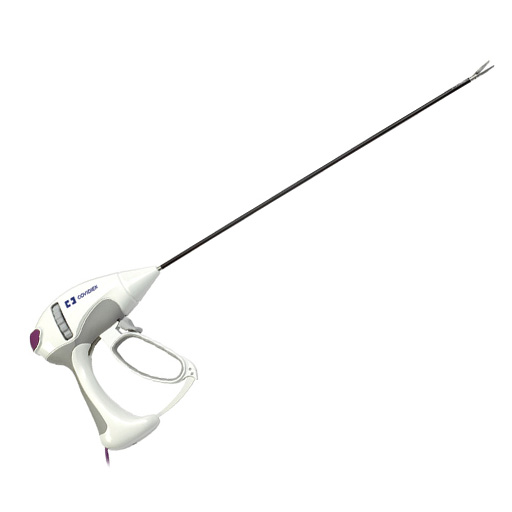

LIGASURE V LS1500
Characteristics* Cut length: 12mm * Shaft length: 37 cm * Shaft diameter: 5mm * Shaft rotation: 179 ° * Seal width: 4.63mm * Seal length: 18mm * Jaw angle: Dolphin nose
Clamp for sealing vessels up to 7mm, Platform compatible (Ligasure).

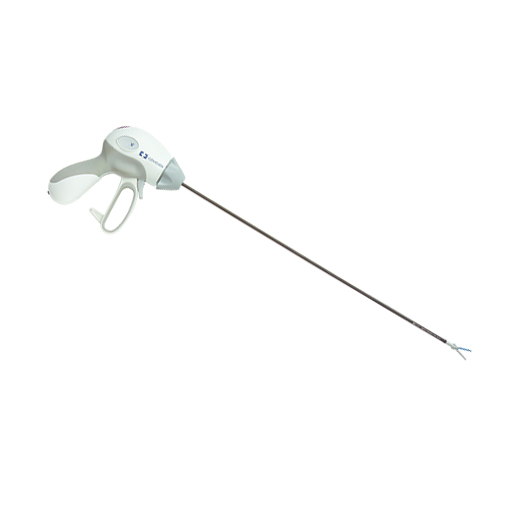

LIGASURE ADVANCE LF5544
Characteristics* Cutting length: 15.5mm * Shaft length: 44 cm * Shaft diameter: 5mm * Shaft rotation: 340 ° * Seal width: 2-3 mm * Seal length: 18mm * Jaw angle: Bilateral curve with monopolar
Clamp for sealing vessels up to 7mm, recommended for bariatric surgery, Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).
LIGASURE MARYLAND LF1737
Characteristics* Cutting length: 18mm * Shaft length: 37 cm * Shaft diameter: 5mm * Shaft rotation: 350 ° * Cutting length: 18mm * Wide opening of the jaws: 13mm
Clip for sealing vessels up to 7mm, efficient, versatile and multifunctional, Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).
LIGASURE MARYLAND LF1744
Characteristics* Cutting length: 18mm * Shaft length: 44 cm * Shaft diameter: 5mm * Shaft rotation: 350 ° * Cutting length: 18mm * Wide opening of the jaws: 13mm
Clip for sealing vessels up to 7mm, efficient, versatile and multifunctional, recommended for bariatric surgery Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).
LIGASURE BLUNT TIP LF1637
Characteristics* Cutting length: 17.8mm * Shaft length: 37cm * Shaft diameter: 5mm * Shaft rotation: 159 ° * Seal width: 5mm * Seal length: 19.5mm * Jaw angle: roma-recta
Clamp for sealing vessels up to 7mm, proven performance, improved design, Platform compatible (Ligasure, Force Triad, LS10 and FT10).

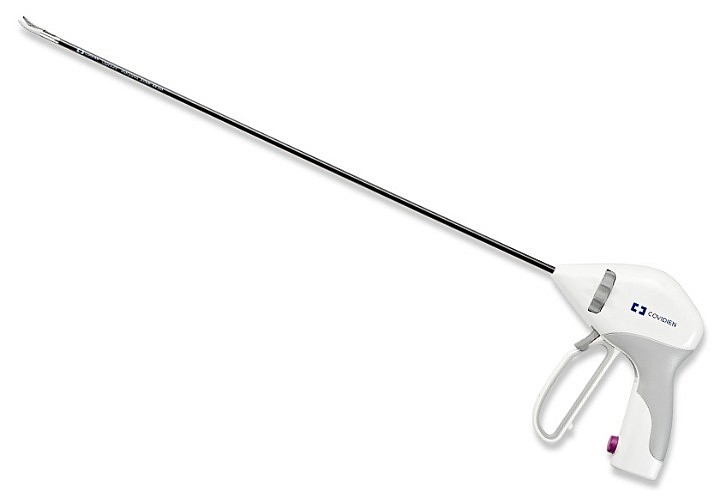

LIGASURE BLUNT TIP LF1544
Characteristics* Cutting length: 17.8mm * Shaft length: 44 cm * Shaft diameter: 5mm * Shaft rotation: 159 ° * Seal width: 5 mm * Seal length: 19.5mm * Jaw angle: roma-recta
Clamp for sealing vessels up to 7mm, proven performance, improved design, recommended for bariatric surgery, Compatible with platforms (Ligasure, Force Triad, LS10 and FT10).

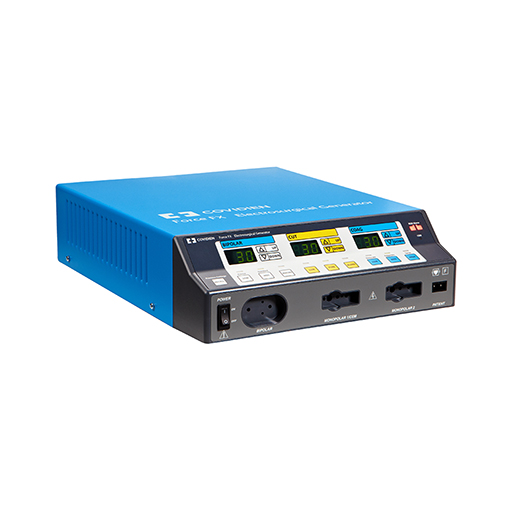

GENERADOR ELECTROQUIRURGICO FORCE FX
Characteristics* Three cutting modes: It offers a low cut option for delicate tissues or cases of laparoscopy, Pure for a clean and precise cut in any type of tissue, Blend to cut with hemostasis. All cut modes are controlled by the Instant Response ™ response system. * Four modes of coagulation: Includes low / for dissection, low voltage for convenient contact coagulation in laparoscopy and delicate tissue work. Medium / Fulgurate for effective non-contact coagulation in most applications, Low / Fulgurate convenient in laparoscopy for its low voltage outputs and High / Spray by coagulating large areas of tissue with minimal depth of necrosis.
Electro surgical generator micro controlled and isolated, designed for all general electrosurgery procedures. The unit includes: • Instant Response ™ technology, • REM ™ system, isolated output, • Compatible with the CEM system, • Compatible with the bipolar current monitor.

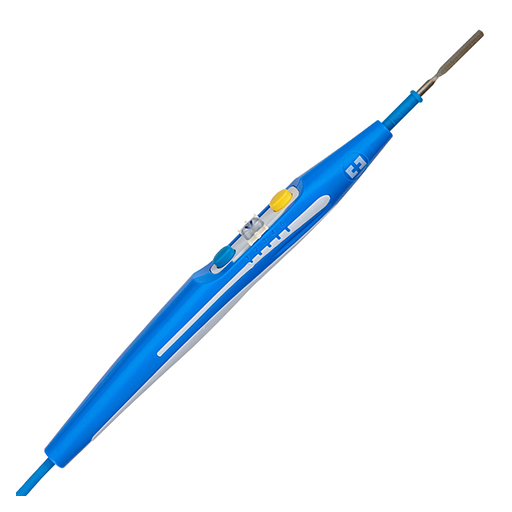

Force TriVerse™ Electrosurgical Device
CharacteristicsForce TriVerse ™ electrosurgical devices allow you to access the Valleylab ™ mode for a unique combination of monopolar hemostasis and dissection, while using a lower power setting, resulting in less carbonizing, less thermal spread and fewer arcs than if used a traditional coagulation method.
The Force TriVerse ™ electrosurgical device, used in conjunction with Valleylab ™ solid laparoscopic electrodes, provides performance and comfort for your laparoscopic procedures.

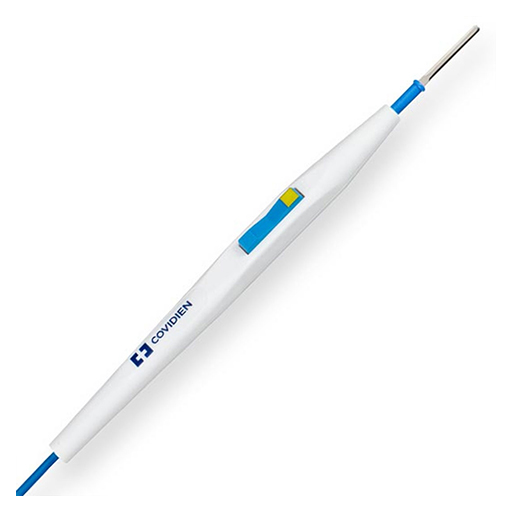

Electrosurgical Pencils with Stainless Steel Electrodes
CharacteristicsThe switches have a high level of tactile feedback - surgeons can hear and feel that the switch is activated, preventing accidental activation of the device.
Hand pens are available with button or switch controls to match the surgeon's preferences.

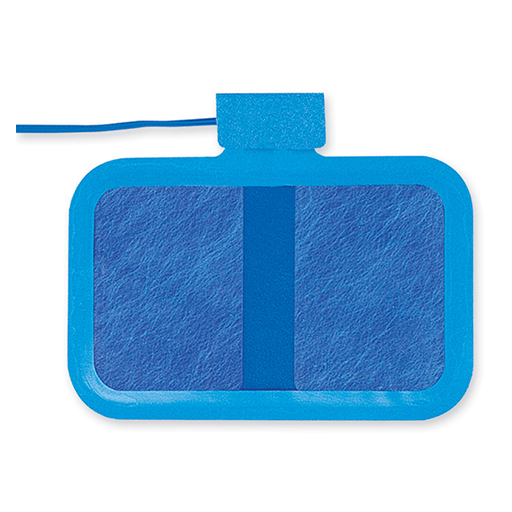

Valleylab™ PolyHesive™ Corded Patient Return Electrodes
Characteristics-Water-based hydrogel lowers skin resistance.
-Unique elongation fills patient skin irregularities and minimizes contact voids to improve the total electrical conduction area.
-Surface area disperses current over large area, minimizing heat buildup.
-Acrylic adhesive improves pad contact quality and provides a moisture barrier to significantly reduce the potential for fluid invasion.
-Adult, infant (<30 lb.), and neonatal (<6 lb.) sizes available.
-Non-irritating* and non-sensitizing*
Valleylab™ REM and Non-REM PolyHesive™ single use, corded patient return electrodes are recognized worldwide for quality, safety, and innovative technology. All return electrodes are manufactured with our patented PolyHesive™ II high moisture, conductive adhesive hydrogel.

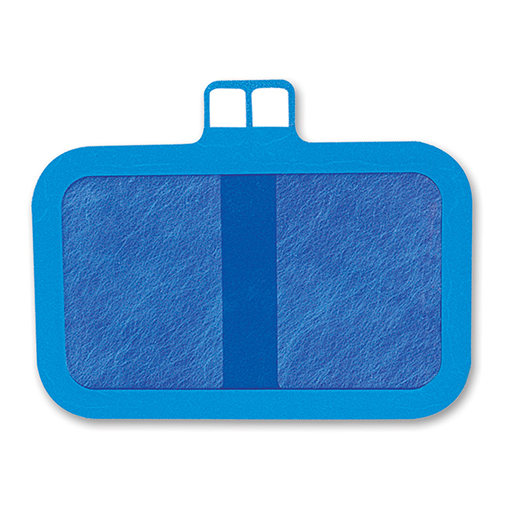

Valleylab™ PolyHesive™ Non-Corded Patient Return Electrodes
Characteristics-Water-based hydrogel lowers skin resistance.
-Unique elongation fills patient skin irregularities and minimizes contact voids to improve the total electrical conduction area.
-Surface area disperses current over large area, minimizing heat buildup.
-Acrylic adhesive improves pad contact quality and provides a moisture barrier to significantly reduce the potential for fluid invasion.
-Adult, infant (<30 lb.), and neonatal (<6 lb.) sizes available.
-Non-irritating* and non-sensitizing*
Valleylab™ REM PolyHesive™ single use, non-corded patient return electrodes are recognized worldwide for quality, safety, and innovative technology. All return electrodes are manufactured with our patented PolyHesive™ II high moisture, conductive adhesive hydrogel.
